Pilot Operated 2 Way 2 Way Solenoid Valve , 6 Solenoid Valve With Thread And Flange Connection
Applicability
1 . Fluid temperature must be less than the marked temperature .
2 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
3 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
4 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
5 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
Reliability
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
Security
1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2.Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
3.Corrosive liquid should be chosen in all stainless steel type , appropriate chooses the corrosive fluid plastic king ( LF ) solenoid valve .
Economy
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
Details

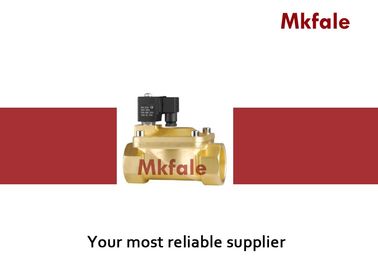

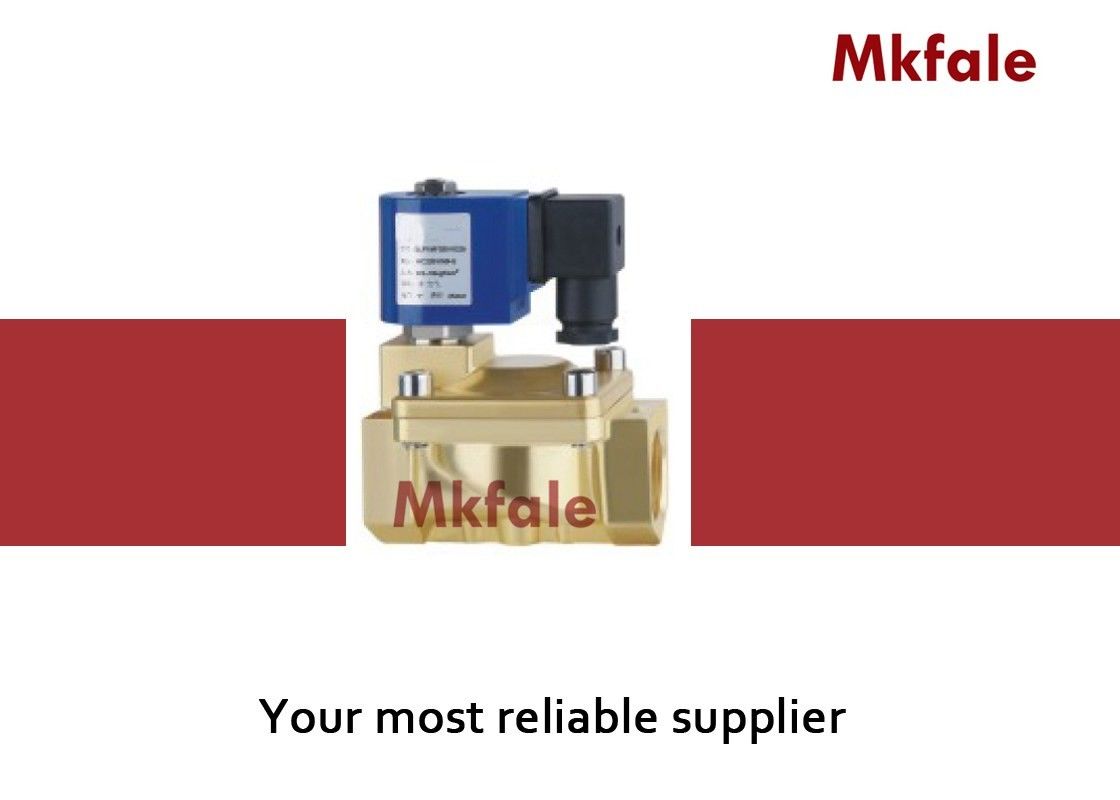

1: 2 Way normally closed solenoid valve , Closed when de -energized , open when energized .
2: Serialized products , small in size , large flow rate , widely use
3: Body material : forged brass . Orifice : Φ 13 ~ 15mm .
4: Ambient Temp . 0 ℃ ~ 65 ℃ , Fluids Temp : 0 ℃ ~ 130 ℃ , Max allowable pressure 20 bar .
5: Flow as the arrow , mounts in any position ; Best position is solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60 HZ 24VAC/ 12VAC ;
7: This series valves are offered NBR , VITON , EPDM etc , For Seals and diaphragm to provide on - off control of various fluids .
8: Can fix expolsion - proof coil
Why choose us
1: Sample order & small quantity order is acceptable .
2: Customize according to your special request .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
