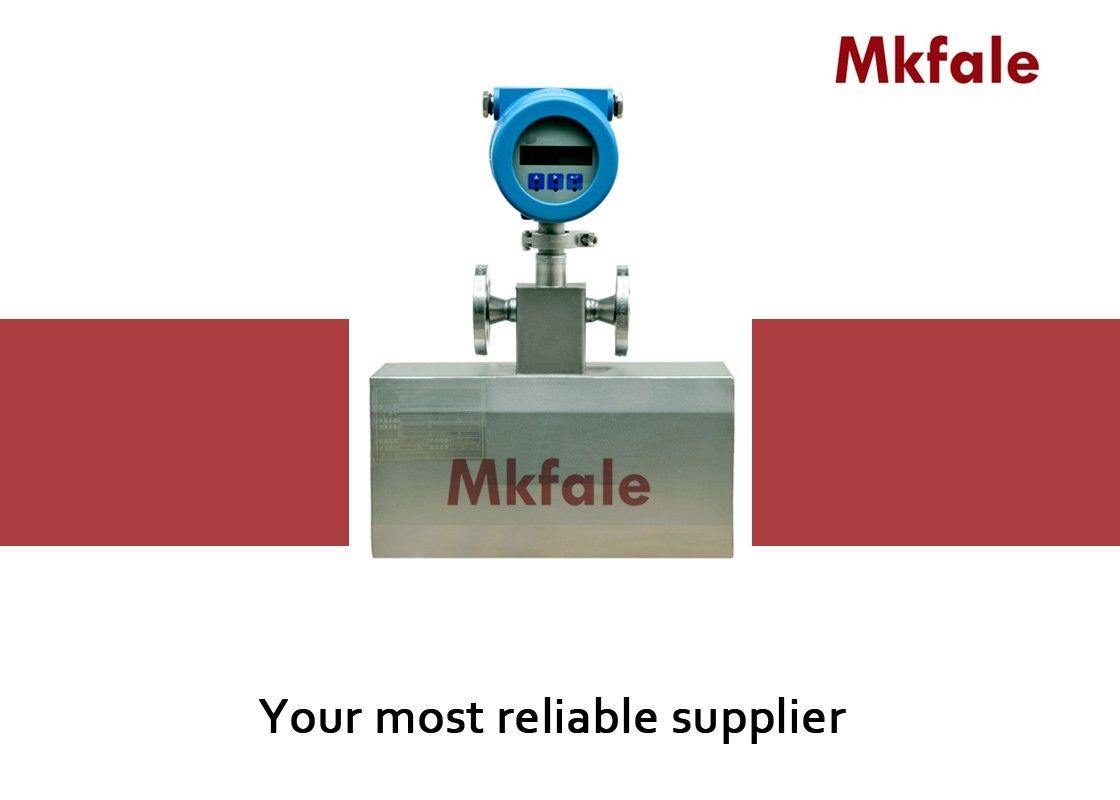

SMCN Series Coriolis Mass Flow Meter Stainless Steel Measuring Tubes Compact Remote Type
SMCN Series Coriolis Mass Flow Meter
Including SMCN series Sensor and SMDPT100 Transmitter, SMCN Series Coriolis Mass Flow Meter with the measuring accuracy is of ± 0 . 15 % ~ ± 0 . 20 %
Advantages & Characteristics
Applying double U or Double C type flow tubes designing with the high accuracy measurement;
Supplying the complete measurements of mass flow, volume flow, density, temperature and
calculated parameters, you can receive the reliable measured results without any complicated
calculation, which can directly replace the volume meter ;
Ease of installation without rectification and filtering parts, no need special installation
required straight pipes;
No moving parts and no need frequent maintenance; no need to be dismounted frequently for
calibration because of high stable performance;
Allowing to run with low flow range to reduce pressure loss and power consumption;
Compact installation to save the installation costs;
Compatible with P Series A(flange intervals)size;
With the ultra-high accurate measurement and long time stability;
With strong generality, enabling the connected transmitter to be interchanged, ease of
maintenance.
Sensor
| Nominal Size |
DN5~DN50 |
| Flow Accuracy |
±0.15% ±0.20% |
| Dens. Accuracy |
±2kg/m3 |
| Temp. Range |
-40 ~ 350 °C |
| Process Pressure |
≤6.3MPa |
| Measuring Tubes |
316L |
| Transmitter |
DPT100 |
Transmitter
| Installation Type |
Compact Remote |
| Power Supply |
24V DC , 220V AC |
| Current Output |
4~20mA(active, the output variables can be configured) |
| Frequency Output |
0~10KHz(active or passive,the output variables can be configured ) |
| Digital Comm. |
RS-485 / Modbus / HART/FF
(optional)
|
| Human-machine Interface |
3 photoelectric keys, 2 lines LCD, configuration, check, zero calibration |
| Ex-mark |
Exde [ib]I ICT6 |
Component Parts of N Series Coriolis Mass Flow Meter
N Series Coriolis Mass Flow Meter is defined as N series Mass Flow Meter with flow accuracy is 0.15%
or 0.2%, whom is made of N series mass flow Sensor and DPT100 Transmitter.
Features and Benefits of N Series Coriolis Mass Flow Meter
Double U or double C type flow pipe design is better for measuring accuracy
Provides integrated mass flow, volume flow, density, temperature measurement and the calculates
the others relevant parameters
Easy on installation, no need rectifier, filter parts, no special requirements for installing direct pipe
section
Without moving parts and no need frequent maintain; high stable function no need frequent
calibration
Allows low range flow running, reducing pressure loss to keep high efficiency
Compact installation to save installation costs
Being compatible with P series A(flanges faces interval distance) dimension
The connected Transmitter can be exchanged for easy maintain
Not being influenced by ambient temperature
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: High quality with competitive price .
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
