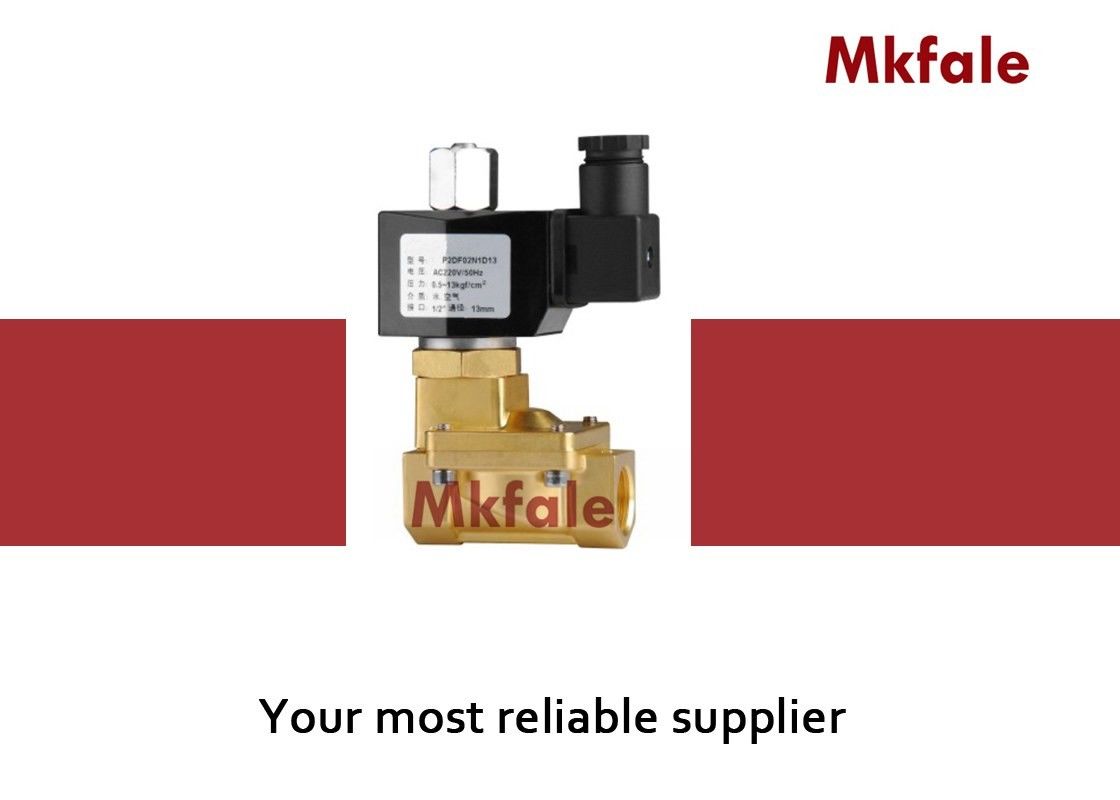

High Pressure Solenoid Shut Off Valve For Water With Forged Brass Body
Applicability
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Solenoid valve allowed the liquid viscosity , generally under 20 CST , more than 20 CST shall be indicated .
4 . About the working pressure difference , the pipeline high - pressure difference less than 0 . 04MPa should be chosen as Z , 2W ,it is directly acting and direct - action step .
the pipeline high - pressure difference higher than 0 . 04MPa can choose polited type ( differential ) solenoid valve ;
Maximum working pressure difference should be less than the biggest calibration pressure of solenoid valve ; General solenoid valve is a one - way work , so should pay attention to whether there is a contrast pressure , if you have to install the check valve .
5 . If fluid is not high cleanliness , should be installed a filters in front of the solenoid valve , general solenoid valve is better claim to medium cleanness
Reliability
Solenoid valve is divided into normally closed and normally open . General choose normally close , power on is open and power off is shut down ; But in the open for a long time and very short close time to choose the normally open type .
Security
1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2.Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
Economy
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
Details
1: 2 Way normally open solenoid valve ; Open when de - energized , closed when energized .
2: Body material : 316 stainless steel
3: Max. Allowable pressure 12 kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size , large flow rate , widely use .
5: flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC
7: This series valves are offered NBR , VITON , EPDM , etc for Seals and diaphragm to provide on - off control of various fluids .
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: 12-18month quality guarantee
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
