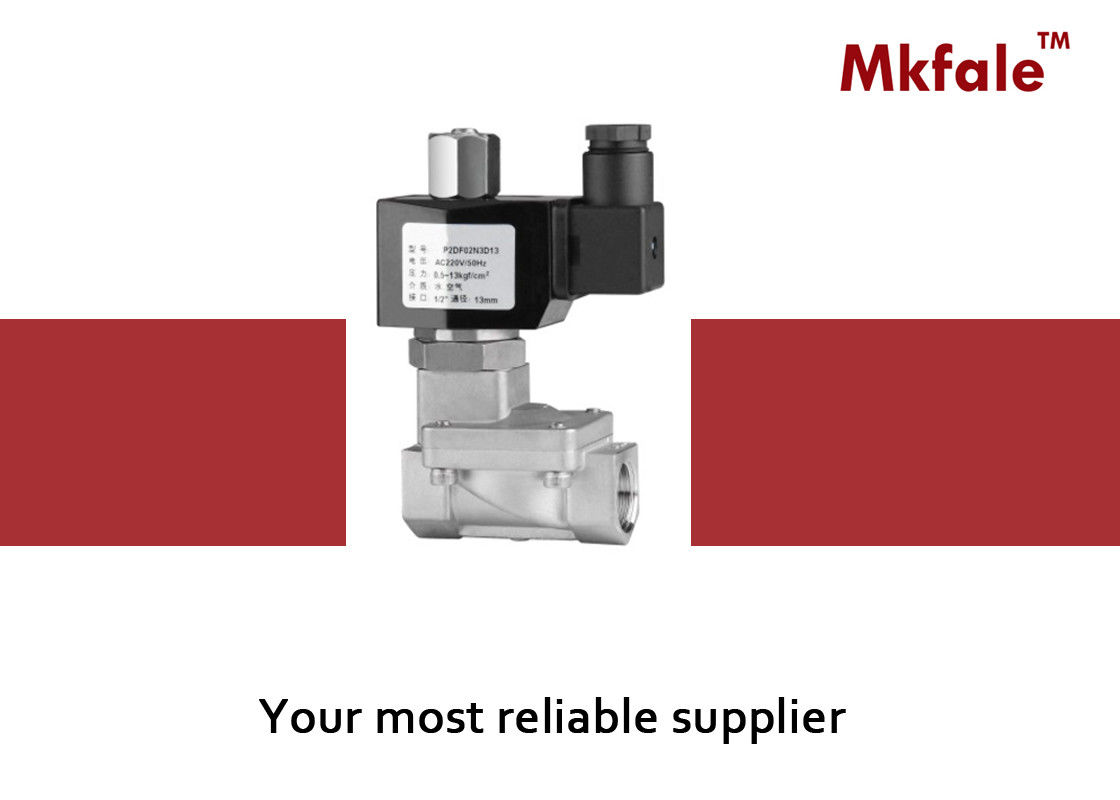

Normally Closed Diaphragm Water Solenoid Valve P9 For Music Fountain
Applicability
1 . The pipeline fluid must same as solenoid valve marked medium .
2 . Fluid temperature must be less than the marked temperature .
3 . Pay attention to the orifice and port size ; usually only open and close two type ; Conditions permit , please install bypass pipe , easy maintenance ; When there is water drain to customize solenoid valve opening and closing time regulation .
4 . Pay attention to the environmental temperature on the influence of solenoid valve .
5 . Power supply current and power consumption should be selected according to the output capacity , power supply voltage generally allow + / - 10 % , must pay attention to AC starting the VA value is higher .
Reliability
Ction time is very short at high frequency generally choose directly acting , large diameter choose fast series .
Security
1.General solenoid valve is not waterproof , when needs waterproof model , we can be customized .
2.Nominal pressure solenoid valve of the highest calibration must be more than the highest pressure in the pipeline , otherwise life will shorten or other unexpected circumstances .
3.Explosive environment must choose corresponding anti - explosion type.
Economy
There are a lot of solenoid valve can be common use , but on the basis of can satisfy the above three terms , should choose the most economical products
Details
1: 2 Way normally open solenoid valve ; Open when de - energized , closed when energized .
2: Body material : 316 stainless steel
3: Max . Allowable pressure 12 kgf / cm ² ; Ambient Temp . 0 ℃ ~ 65 ℃
4: Serialized products , small in size ,large flow rate widely use .
5: Flow as the arrow , mounts in any position ; Best position is Solenoid vertical and upright direction .
6: Voltage : 220VAC / 230VAC / 240VAC / 110VAC / 24VAC 50 / 60HZ 24VDC / 12VDC ;
Voltage : Tolerance : +10 % to - 10 % applicable voltage .
7: This series valves are offered NBR , VITON , EPFM etc for Seals and diaphragm to provide on - off control of various fluids .
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
Why choose us
1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .
