Name: Anti Vibration Intelligent Vortex Shedding Flow Meter Temperature And Pressure Compensation
Brand: NINGBO SANMIN IMPORT AND EXPORT CO.,LTD.
SKU: SMVF-Z Integrated Type
Price: Negotiable USD
Availability: InStock

Home Products Vortex Flow Meter

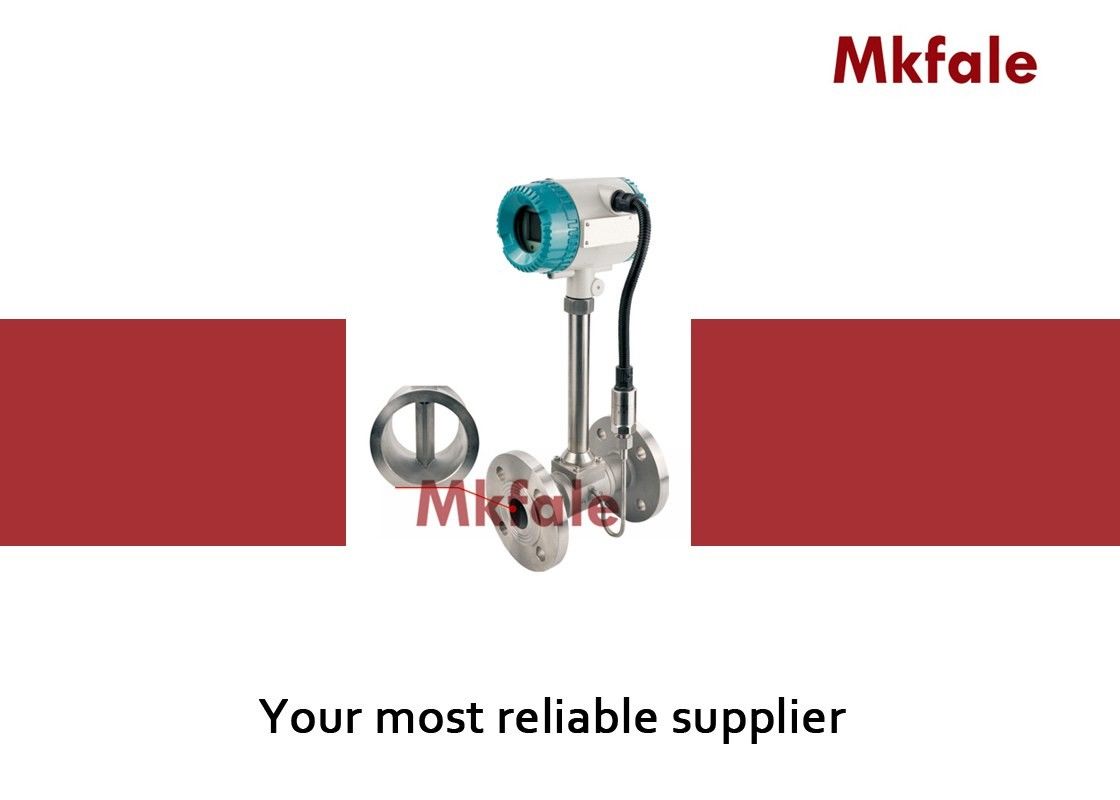

Anti Vibration Intelligent Vortex Shedding Flow Meter Temperature And Pressure Compensation

Product Details:

Place of Origin:	China
Brand Name:	MKfale
Model Number:	SMVF-Z Integrated Type

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	Negotiation
Packaging Details:	Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time:	5 - 30 Work Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	Negotiation

Contact Now

Detailed Product Description

Normally:	- 40 ~ 350 ℃	Communication:	HART , RS485
Connection:	Flange	Body:	Cast Steel , Stainless Steel 304 / 316L
Diameter:	DN10 ~ 3000 ( Flage And Water ) DN100 ~ DN3000 ( Insertion )	Fluid:	Liquid , Common Gas , Saturated Steam , Superheated Steam , Other
Highlight:	vortex type flow meter , vortex steam flow meter

Anti Vibration Intelligent Vortex Shedding Flow Meter Temperature And Pressure Compensation

Technical Specification Table

SMVF Vortex Flow Meter	Integrated Type	Remote separate type
Description:	Normally:-40℃~350℃ Communication: HART,RS485 Brand new digital processing calculation, enjoy excellent anti-vibration & anti-interference performance Adopt built-in sensor structure ,better protect the flow sensor Flow sensor embedded temperature sensor ,reduce the leakage point Main body adopt precesion casting technology ,stronger swirl generating body
Nominal Diameter	DN10~DN300(Flange and water), DN100~DN3000(Insertion)
Body Material	Cast steel; SS304; SS316L
Connection Type	Flange; Wafer; Insertion; Others
Power	24VDC
Special Mark	Blank: Common; M: Standard Signal Output; B: Intrinsically Safe Explosion-proof X: On Site Display; G: High Temperature(350℃) W: Temperature Compensation; Y: Pressure Compenstion Z: Temperature & Pressure Compensation
Measured Medium	Liquid; Common Gas; Saturated Steam; Superheated Steam; Others

Nominal Diameter	25	32	40	50	65	80	100	125
Water	1.3~15	1.5~16	3~33	4~44	6~66	13~140	20~220	36~400
Standard Measuring Range(m3/h)
Normal pressure and temperature air(NPT air)	8~100	14~350	18~450	30~750	50~1250	70~1750	100~2500	200~5000
Standard Measuring Range(m3/h)

Nominal Diameter	150	200	250	300
Water	50~600	100~1200	150~1800	200~2400
Standard Measuring Range(m3/h)
Normal pressure and temperature air(NPT air)	400~10000	600~15000	1000~25000	-
Standard Measuring Range(m3/h)

Flange / Wafer Type

Size	15	20	25	32	40	50	65	80	100	125	150	200	250	300
Mark No .	150	200	250	320	400	500	650	800	101	125	151	201	251	301

Insertion Type

Size	100	125	150	200	250	300	350	400	500	600	700	800	900	1000	1200	1400	1600	1800	2000
Mark No .	100	125	151	201	251	301	351	401	501	601	701	801	901	102	122	142	162	182	201

Why choose us

1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service

FAQ

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.

Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .

Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
