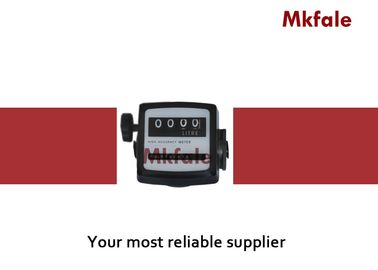

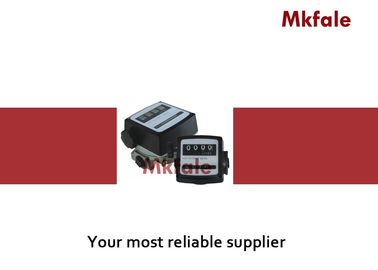

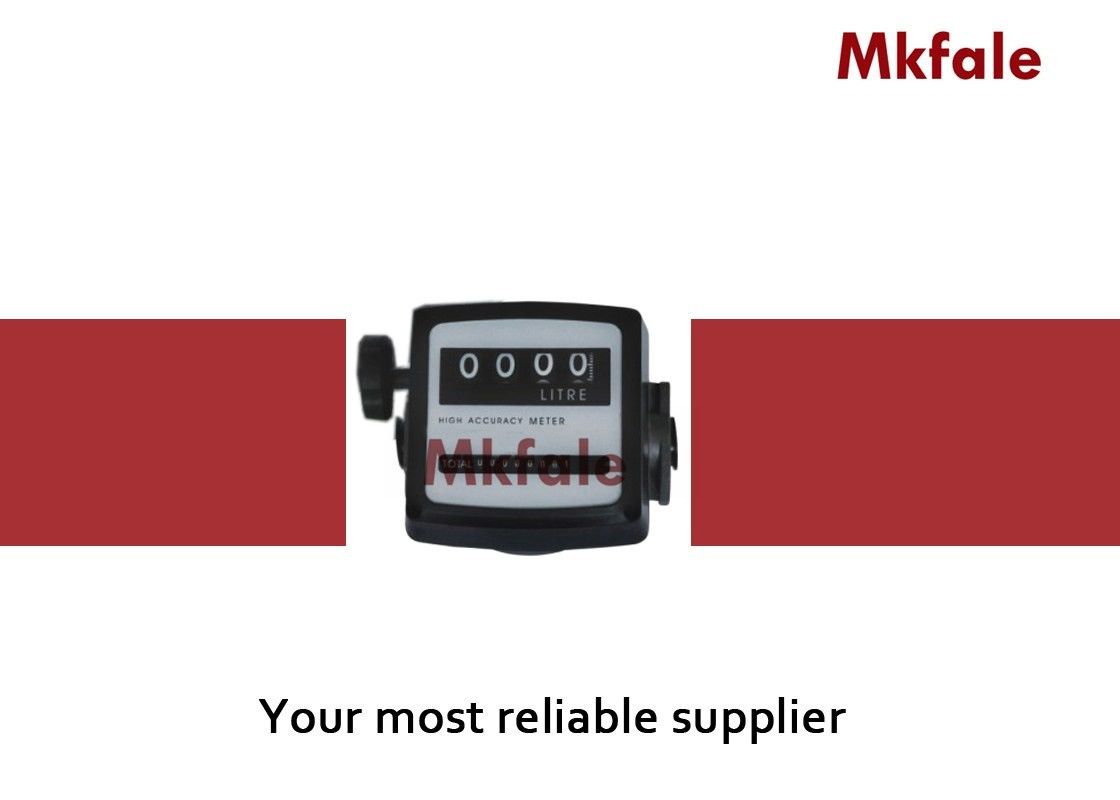

Low Cost Mechanical Flow Meter 4 - Wheel Mechanical Diesel Fuel Flow Meter
Only suitable for use with diesel or biodiesel , kerosene
Robust nutating disc flow meter shows up to 9999 litres
20 ~ 120 L / min . 1 " BSPF ports .
Max . pressure 3 bar ( Gravity flow )
Aluminum housing & cover .
4 digit register . 8 digit non resettable totaliser
Front face can be rotated in 90 ° increments
Accuracy : + / - 1 % with adjustable calibration
4 - Wheel Mechanical Diesel Fuel Flow Meter to measure the exact quantity of the dispensed fuel. They are designed for noncommercial use only.
Reliable, inexpensive, easy to install and simple to calibrate on the workplace.
Mechanical readout device with rotating wheels.
4 digitals subtotals resettable to zero, 8 digital total readouts can not.
Parameters
| Name |
4-wheel mechanical diesel fuel flow meter. |
| Unit: |
Litter |
| Flow rate: |
20-120L/M |
| Accuracy: |
1% |
| Size: |
1 inch |
| Medium: |
Diesel |
| Display: |
Mechanical totalizer |
| Net weight: |
2.2kgs |
| Totalizer: |
4-digit reset,8-digit total |
| Housing: |
Alluminium alloy |
| Installation: |
Vertical or Horizontal.. |
| Working pressure: |
0.05Mpa~1.0Mpa |
Why choose us
1: Customize according to your special request .
2: Provide free products information .
3: Large stock for fast shipping .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
