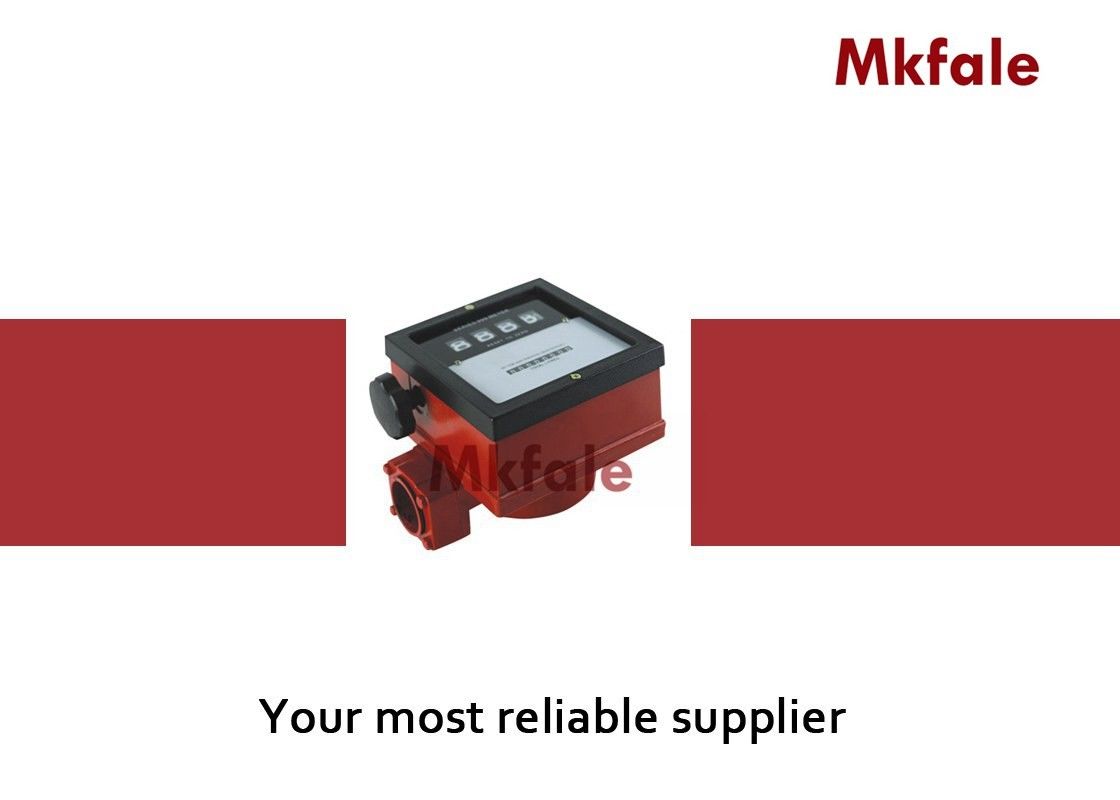

Aluminum Body Mechanical Fuel Flow Meter 25 - 150 L / Min 1 - 1 / 2 " BSPF Ports
Specification
Only suitable for use with diesel or biodiesel , kerosene
Robust nutating disc flow meter shows up to 9999 litres
25 - 150 L / min . 1 - 1 / 2 "BSPF ports
Max . pressure 3 bar ( gravity flow )
Accuracy of ± 1 % with adjustable calibration .
Aluminum housing & Cover .
4 digit register . 7 digit non resettable totaliser
Front face can be rotated in 90 degree increments
| Model Number |
M-FM-900 |
| Inlet Size |
BSPF 1.5' |
| Flowrate |
25 - 150L / min |
| Material |
Aluminum |
| Color |
Red for body, Black&White for Panel |
| Application Medium |
Diesel, Gasoline, Kerosene |
| Max.Working Pressure |
3 Bar |
| Accuracy |
±1% |
| Unit Count |
4 digits sub-total |
| Total Count |
8 digits total |
| Package |
6 pcs/carton |
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
