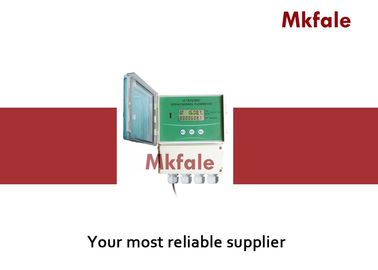

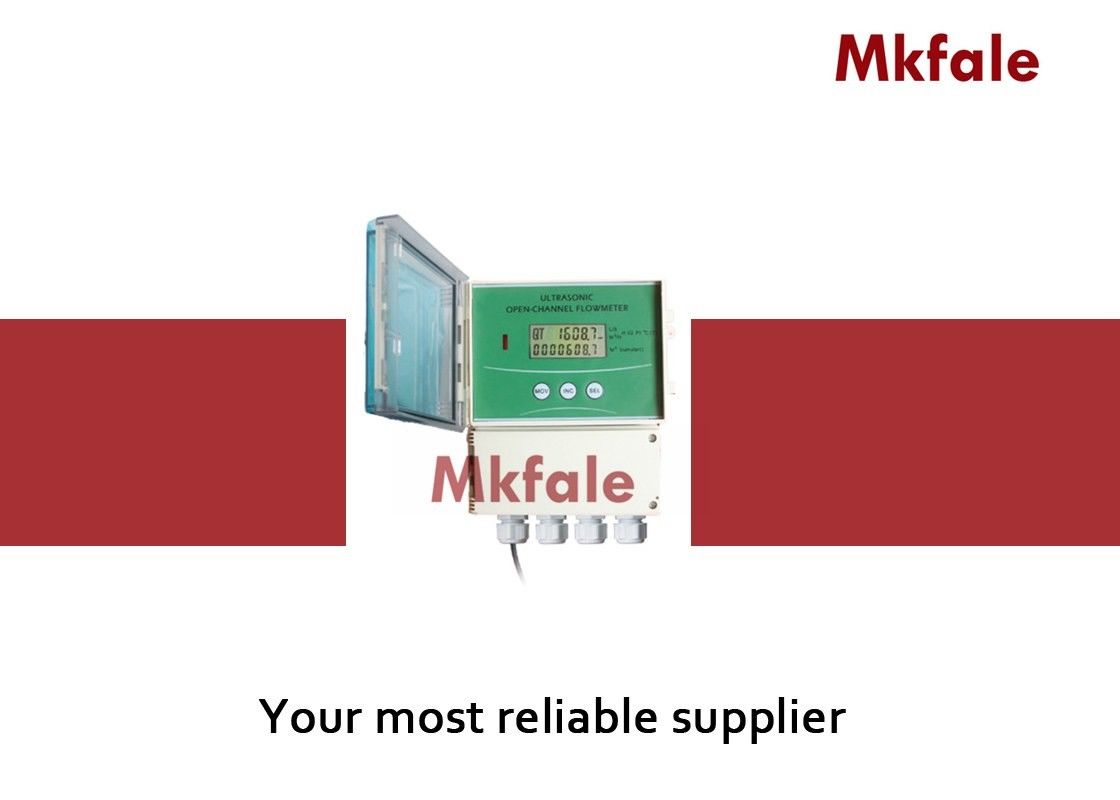

Intelligent Ultrasonic Open Channel Flow Meter Thread , Flange Or Support / Trestle
Technical Specification Table
| SMUO ULTRASONIC OPEN CHANNEL FLOW METER |
| Wire Type |
Parshall Flume,Rectangular weir, Triangular weir(30 degrees,45 degrees,60 degrees,90 degree.s) |
| Liquid Level Resolution |
1mm |
| Level Deviation |
1mm or 0.2% of full range(peaceful water surface) |
| Display Mode |
Two lines with 14 digit LCD display |
| Parameter Setting Mode |
3 digit button (Handheld Operator optional) |
| Instantaneous flow Display Range |
0.000~99999L/S or m³/h |
| Accumulative Flow display max Value |
9999999.9 m³/h |
| Analog Signal Output |
One channel DC4-20mA current outut,correspond to instantaneous flow |
| Load Resistance |
0~500 Ohm |
| Digital Communication |
RS485 serial communication,Standard MODBUS-RTU protocol |
| Relay Output |
Upper limit,Lower limit alarm and control(instantaneous flow and level)
Accumulative Flow Pulse Output, Can set high/low level and error alarm etc. |
| Relay Mode |
Open/close(can be set) |
| Relay Number |
Max 6 |
| Relay specification |
5A 250VAC/30VDC |
| Power Supply |
DC24V(+/-5%) 0.2A, AC220V(+/-20%) 0.1A |
| Measurement Cycle |
1 second(adjustable) |
| Ambient Temperature |
-40~+70 deg C |
| Housing Material |
ABS |
| Housing Protection |
IP67 |
| Cable Entry |
PG9/PG11/PG13.5, 10~1000M |
| Installation way |
Thread, flange or support/trestle |
| Dimension |
250*185*125mm |
| Pressure |
Below 0.2Mpa |
| Beam angle |
8° (3db) |

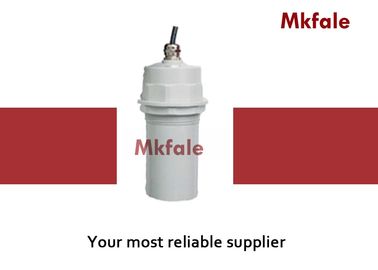

| Ultrasonic Level Sensor Technical Parameter |
Range |
0.00~4.0mm(liquid level) |
| Blind zone |
0.20m |
| Ambient temperature |
-40~+70 deg C |
| Housing Protection |
IP68 |
| Housing Material |
ABS/PVC/PTFE |
