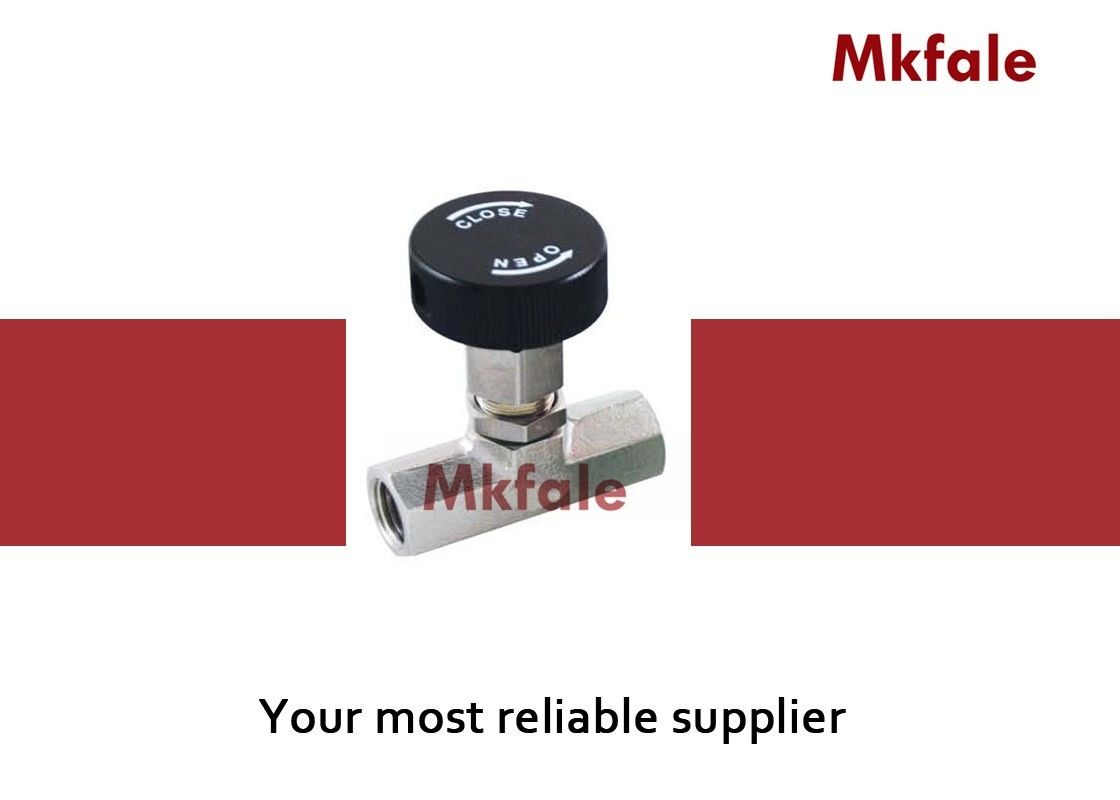

Thread Famale / Male Mini Needle Valve with Stainless Steel Body Material
Dimension
| Basic Model No . |
P ( PT , NPT , G ) |
| MNV – 01 F / M |
1 / 8 |
1 / 8 |
| MNV – 02 F / M |
1 / 4 |
1 / 4 |
| MNV – 03 M |
3 / 8 |
3 / 8 |
| MNV – 03 F |
3 / 8 |
3 / 8 |
| MNV – 04 M |
1 / 2 |
1 / 2 |
| MNV – 04 F |
1 / 2 |
1 / 2 |
Ordering Information
Group : Mini Needle Valve
Dimensions : 01 = 1 / 8 " , 02 = 1 / 4 " , 03 = 3 / 8 " , 04 = 1 / 2 "
Connection Type : F = Female , M = Male
Option : Angle Type
Feature & Benefits
1 . Free- swiveling ball end stem ( metal seat , std . ) assure bubble tight valve closure without seat galling . The special hardened ball seat is ideal for both gas and liquid service .
2 . The packing is adjustable with less possibility of bonnet / body leaks .
3 . Full back – seated bonnets prevent accidental stem removal and blowout .
Unique design minimizes emissions while offering easy access to the packing .
4 . Max . pressure rating : SS316 , 6000Psi
BRASS , 3000Psi
Material of Bonnet / Stem / Seat
| Parts Name |
Material |
Description |
| Body |
Stainless Steel |
ASTM479 – 316 / 304 |
| Bonnet |
Stainless Steel |
ASTM479 – 316 / 304 |
| Gland Retainer |
Stainless Steel |
ASTM479 – 316 / 304 |
| Washer |
Stainless Steel |
ASTM479 – 316 / 304 |
| Packing |
PTFE |
PTFE / GRAFOIL |
| Packing Washer |
Stainless Steel |
ASTM479 – 316 / 304 |
| Stem |
Stainless Steel |
ASTM479 – 316 / 304 |
| Lock Nut |
Stainless Steel |
ASTM479 – 316 / 304 |
| Grub Screw |
Stainless Steel |
ASTM 276 - 304 |
| Handle |
Stainless Steel |
ASTM 276 - 304 |
| Dust Cap |
PLASTIC |
| Non – Rotating End Tip |
Stainless Steel |
ASTM479 – 316 / 304 |
Why choose us
1: Customize according to your special request .
2: Provide free products information .
3: Various style for each products and completely series industry instruments.
4: Large stock for fast shipping .
5: High quality with competitive price .
FAQ
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
