Small Open Channel Ultrasonic Flow Meter / Portable Ultrasonic Water Flow Meter

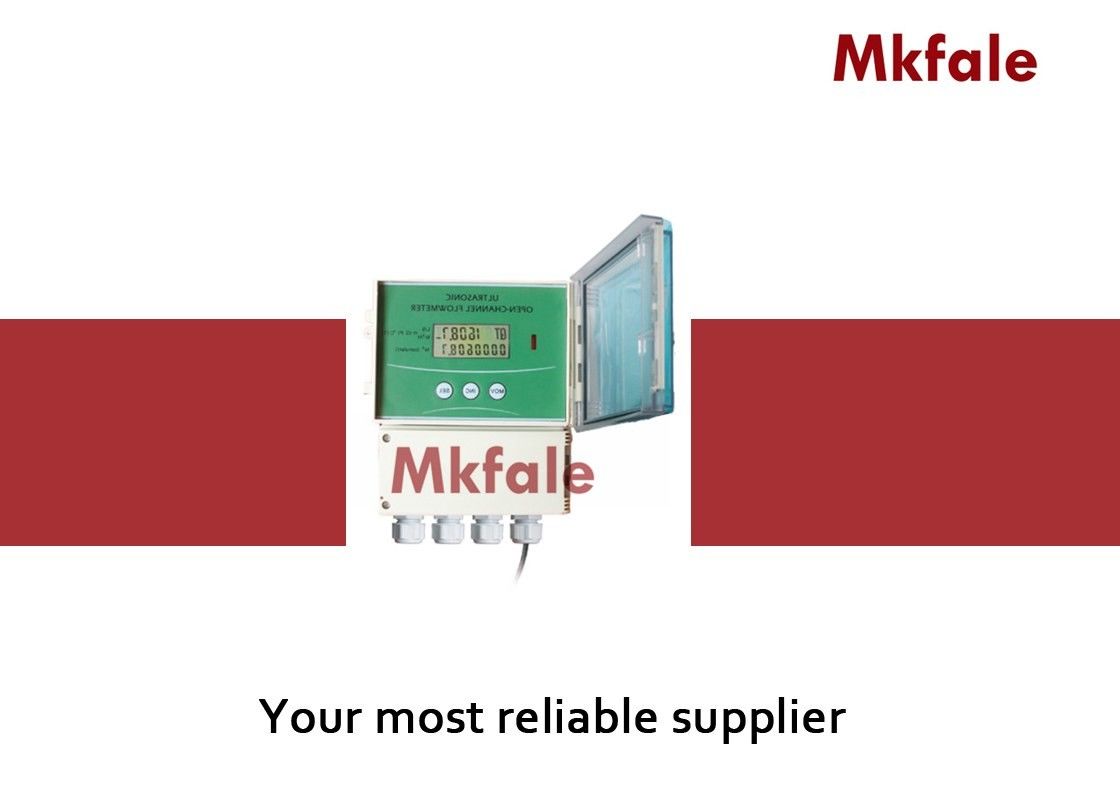

SMUO ULTRASONIC OPEN CHANNEL FLOW METER
Technical Specification Table
Wire Type :
Parshall Flume , Rectangular weir , Triangular weir ( 30 degrees , 45 degrees , 60 degrees , 90 degrees )
Liquid Level Resolution :
1mm
Level Deviation :
1mm or 0.2% of full range ( peaceful water surface )
Display Mode :
Two lines with 14 digit LCD display
Parameter Setting Mode :
3 digit button ( Handheld Operator optional )
Instantaneous flow Display Range :
0 . 000 ~ 99999L / S or m³ / h
Accumulative Flow display max Value :
9999999 . 9 m³ / h
Analog Signal Output :
One channel DC4 - 20mA current outut , correspond to instantaneous flow
Load Resistance :
0 ~ 500 Ohm
Digital Communication :
RS485 serial communication , Standard MODBUS-RTU protocol
Relay Output :
Upper limit , Lower limit alarm and control ( instantaneous flow and level )
Accumulative Flow Pulse Output , Can set high / low level and error alarm etc .
Relay Mode :
Open / close (can be set )
Relay Number :
Max 6
Relay specification :
5A 250VAC / 30VDC
Power Supply :
DC24V ( + / - 5 % ) 0 . 2A , AC220V ( + / - 20 % ) 0 . 1A
Measurement Cycle :
1 second ( adjustable )
Ambient Temperature : - 40 ~ + 70 deg C
Housing Material :
ABS
Housing Protection :
IP67
Cable Entry :
PG9 / PG11 / PG13 . 5 , 10 ~ 1000M
Installation way :
Thread , flange or support / trestle
Dimension :
250 * 185 * 125mm
Pressure Below : 0 . 2Mpa
Beam angle : 8 ° ( 3db )

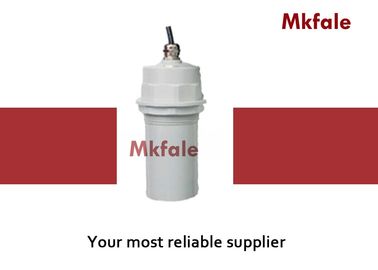

Ultrasonic Level Sensor Technical Parameter
Range :
0 . 00 ~ 4 . 0mm ( liquid level )
Blind zone :
0 . 20m
Ambient temperature :
- 40 ~ + 70 deg C
Housing Protection :
IP68
Housing Material :
ABS / PVC / PTFE
