SMCP Series 24V DC 220V AC Including Sensor And SMDPT100 Transmitter Coriolis Mass Flow Meter
Including SMCP series Sensor and SMDPT100 Transmitter, P Series Coriolis Mass Flow Meter with the
measuring accuracy is of ±0.1%.
Pressure Loss
pressure loss is affected by the sensor geometric form, gas density and flow rate. While customers are
suggested that the sensor pressure loss couldn't surpass 0.127Mpa when design type selection.
Flow Rate
The flow rate of gas measure is much greater than the flow rate of liquid measure, the higher flow rate
leads to the noise will affect the signal of flow meter. So the flow rate within sensor pipe should be lower
0.5 times than sounds rate when the pressure loss of flow meter under 0.127Mpa.
Process Temperature Influence
Process Temperature Influence is defined as below:
Regarding to Mass Flow Measurement, Process Temperature Influence is the maximum zero offset
which is caused by the Process temperature deviates zero coordinate temperature.
Regarding to Density Measurement, process temperature Influence is the maximum measurement
deviation which is caused by the process temperature deviates density calibrated temperature.
Sensor
| Nominal Size |
DN80~DN250 |
| Flow Accuracy |
±0.1%(liquid) ±0.5%(gas) |
| Dens. Accuracy |
±1kg/m3 |
| Temp. Range |
-40~350°C |
| Process Pressure |
≤6.3MPa |
| Measuring Tubes |
316L |

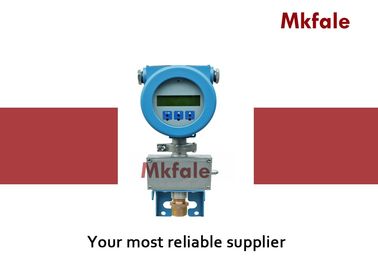

| Transmitter |
SMDPT100 |
Standard Volume
In most application areas, customers are used to use standard volume to determine the volume under
pressure and temperature, standard volume also called as ”standard mass” flow unit to the fixed
component liquid. Applied to the density under standard condition(receiving from reference data), flow
meter would be output under the configuration of standard volume unit,which means that could be
calculated between measured liquid quality and entrained liquid standard density, but no need the
compensation of pressure, temperature and density.
Advantages & Characteristics

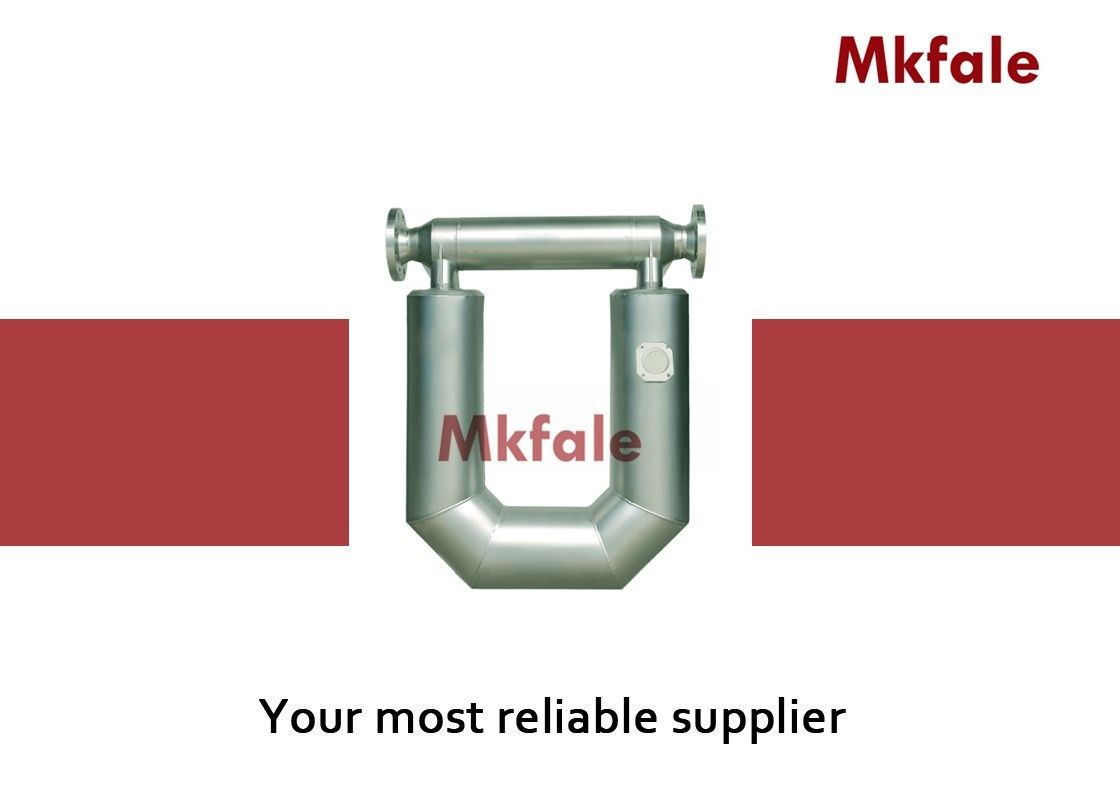

Applying double U or Double C type flow tubes designing with the higher sensitivity;
Supplying the complete measurements of mass flow, volume flow, density, temperature and
calculated parameters, you can receive the reliable measured results without any complicated
calculation, which can directly replace the volume meter;
Ease of installation without rectification and filtering parts, no need special installation
required straight pipes;
No moving parts and no need frequent maintenance; no need to be dismounted frequently for
calibration because of high stable performance;
Allowing to run with low flow range to reduce pressure loss and power consumption;
Compact installation to save the installation costs;
Compatible with N Series A(flange intervals)size;
With the ultra-high accurate measurement and long time stability, enabling it to be applied in
custody transfer measurement of traded;
With the super wide turndown to accurately measure gas;
With strong generality, enabling the connected transmitter to be interchanged, ease of
maintenance.
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
