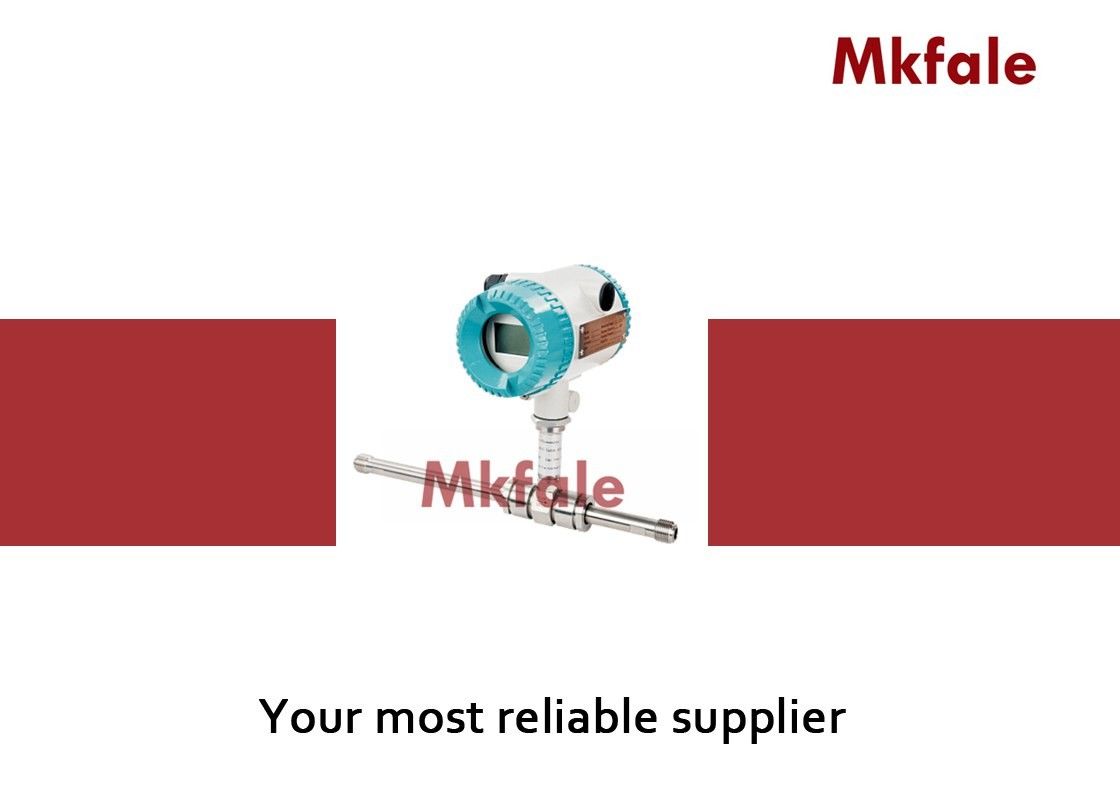

Thread Connection Turbine Flow Meter Stainless Steel Sensor Material
Description
This model turbine flow meter adopt new type sensor with lower pressure loss, starting flow is small,anti-corrosion,and with long term work life. It also have good performance on anti-seismic and surging flow. High accuracy,0.5% normally,0.2% in option. High repeatability,its repeatability could reach 0.05%-0.2% in short-term. So this flow meter is a good choice in trade settlement. This type flow meter use micro-power technology,power consumption is low. It could be powered by battery or outside power.
Work Condition
Medium temperature: -20℃~+120℃, Ambient temperature: -20℃~+60℃
Relative humidity: 5%~90%, Atmosphere:86Kpa~106Kpa
Power Supply
Outside Power supply: +24VDC±15% Ripple ≤ ±5%, apply to 4-20mA output,pulse,RS485 communication. Internal power supply: 3.0V 10AH Lithium battery,regular work when the voltage in the range of 2V-3V.
Signal Line Interface
Basic model: Houseman joint or three core cable. Explosion proof model:Internal thread M20*15
Technical Specification Table
| SMTF Turbine Flow Meter |
Integrated type |
| Carried Standard |
Turbine flow sensor ( JB / T9246 – 1999 ) |
| Diameter and Connection |
4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection |
| Accuracy |
±1%R,±0.5%R,±0.2%R(Customized) |
| Measure Ratio |
1 : 10 ; 1 : 15 ; 1 : 20 |
| Sensor Material |
SS304 , SS316L , etc |
| Signal Output |
Pluse , 4 - 20mA |
| Communication |
RS485 ,HART |
| Explosion Proof Class |
ExiaIICT4 or EXDIIBT6 |
| IP Grade |
IP65 or higher grade for option . |
Why choose us
1: Customize according to your special request .
2: Provide free products information .
3: Various style for each products and completely series industry instruments.
4: Large stock for fast shipping .
5: 12-18month quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
