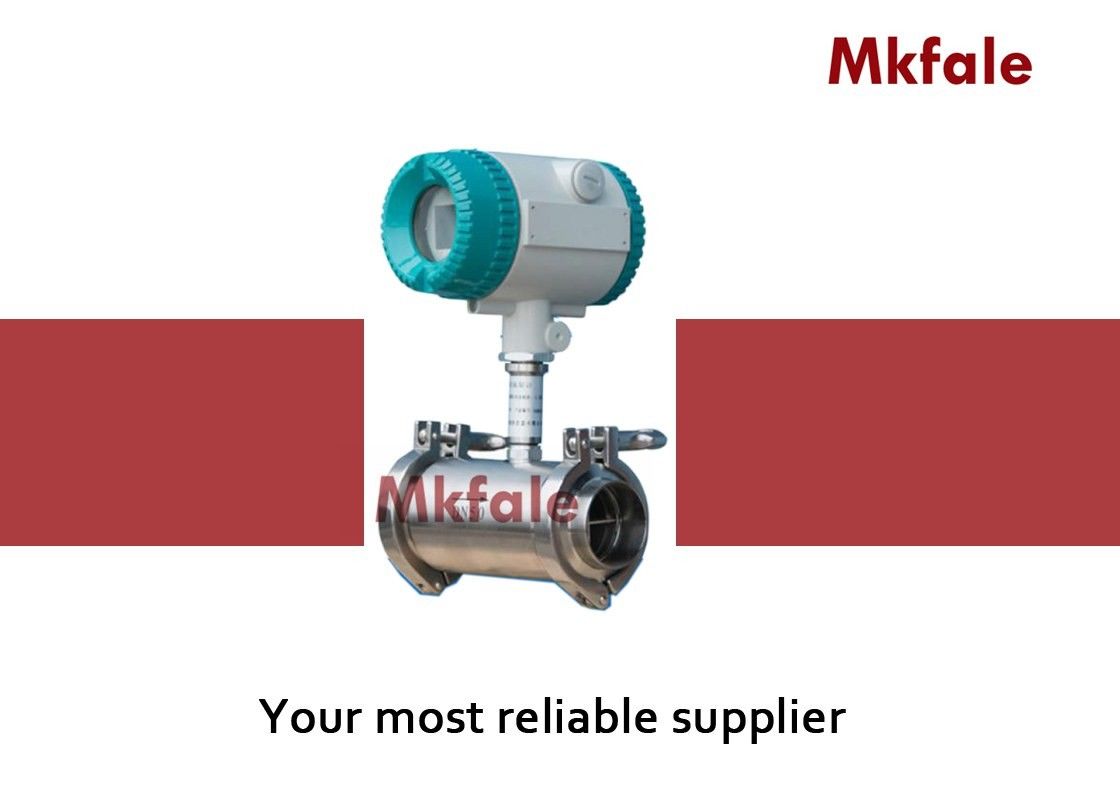

SMTF Stainless Steel Sensor Material Pluse , 4 - 20mA Signal Output Turbine Flow Meter
Water Electromagnetic Flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Variable area flow meter ( Metal Rota Meter ) , Stainless steel Gauge , oil liquied gauge , Bimetal thermometer, level transmitter , Temperature transmitter , Water solenoid Valve
Technical Specification Table
| Carried Standard |
Turbine flow sensor ( JB / T9246 – 1999 ) |
| Diameter and Connection |
4 , 6 , 10 , 15 , 20 , 25 , 32 , 40 , 50 , 65 , 80 Thread connection |
| Accuracy |
±1%R,±0.5%R,±0.2%R(Customized) |
| Measure Ratio |
1 : 10 ; 1 : 15 ; 1 : 20 |
| Sensor Material |
SS304 , SS316L , etc |
| Work Condition |
Medium temperature : - 20 ℃ ~ + 120 ℃ , Ambient temperature : - 20 ℃ ~ + 60 ℃
Relative humidity : 5 % ~ 90 % , Atmosphere : 86Kpa ~ 106Kpa
|
| Signal Output |
Pluse , 4 - 20mA |
| Communication |
RS485 ,HART |
| Power Supply |
Outside Power supply : + 24VDC ± 15 % Ripple ≤ ± 5 % , apply to 4 - 20mA output , pulse , RS485 communication .
Internal power supply : 3 . 0V 10AH Lithium battery , regular work when the voltage in the range of 2V - 3V .
|
| Signal Line Interface |
Basic model : Houseman joint or three core cable .
Explosion proof model : Internal thread M20 * 15
|
| Explosion Proof Class |
ExiaIICT4 or EXDIIBT6 |
| IP Grade |
IP65 or higher grade for option . |
Features
This model turbine flow meter adopt new type sensor with lower pressure loss ,
starting flow is small , anti – corrosion , and with long term work life.
It also have good performance on anti-seismic and surging flow.
High accuracy , 0 . 5 % normally , 0 . 2 % in option .
High repeatability , its repeatability could reach 0 . 05 % - 0 . 2 % in short – term .
So this flow meter is a good choice in trade settlement.
This type flow meter use micro-power technology , power consumption is low .
It could be powered by battery or outside power.
Measure range and work pressure
|
Diameter
mm
|
Normal Measure Range m ³ / h |
Extended Measure Range
m ³ / h
|
Acquiescent Installation Method And Streets Levels |
Optional Installation Method And Stress Level |
Designated Stress Level MPa |
| DN4 |
0 . 04 ~ 0 . 25 |
0 . 04 ~ 0 . 4 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
12 , 16 , 25 |
| DN6 |
0 . 1 ~ 0 . 6 |
0 . 06 ~ 0 . 6 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
12 , 16 , 25 |
| DN10 |
0 . 2 ~ 1 . 2 |
0 . 15~ 1 . 5 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN15 |
0 . 6 ~ 6 |
0 . 4 ~ 8 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN20 |
0 . 8 ~ 8 |
0 . 45 ~ 9 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN25 |
1 ~ 10 |
0 . 5 ~ 10 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN32 |
1 . 5 ~ 15 |
0 . 8 ~ 15 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN40 |
2 ~ 20 |
1 ~ 20 |
Thread , 6 . 3MPa |
Flange , 2 . 5 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN50 |
4 ~ 40 |
2 ~ 40 |
Flange , 2 . 5MPa |
Flange , 6 . 3 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN65 |
7 ~ 70 |
4 ~ 70 |
Flange , 1 . 6MPa |
Flange , 6 . 3 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN80 |
10 ~ 100 |
5 ~ 100 |
Flange , 1 . 6MPa |
Flange , 6 . 3 MPa |
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN100 |
20 ~ 200 |
10 ~ 200 |
Flange , 1 . 6MPa |
|
4 . 0 , 6 . 3 , 12 , 16 , 25 |
| DN125 |
25 ~ 250 |
13 ~ 250 |
Flange , 1 . 6MPa |
|
2 . 5 , 4 . 0 , 6 . 3 , 12 , 16 |
| DN150 |
30 ~ 300 |
15 ~ 300 |
Flange , 1 . 6MPa |
|
2 . 5 , 4 . 0 , 6 . 3 , 12 , 16 |
| DN200 |
80 ~ 800 |
40 ~ 800 |
Flange , 1 . 6MPa |
|
2 . 5 , 4 . 0 , 6 . 3 , 12 , 16 |
