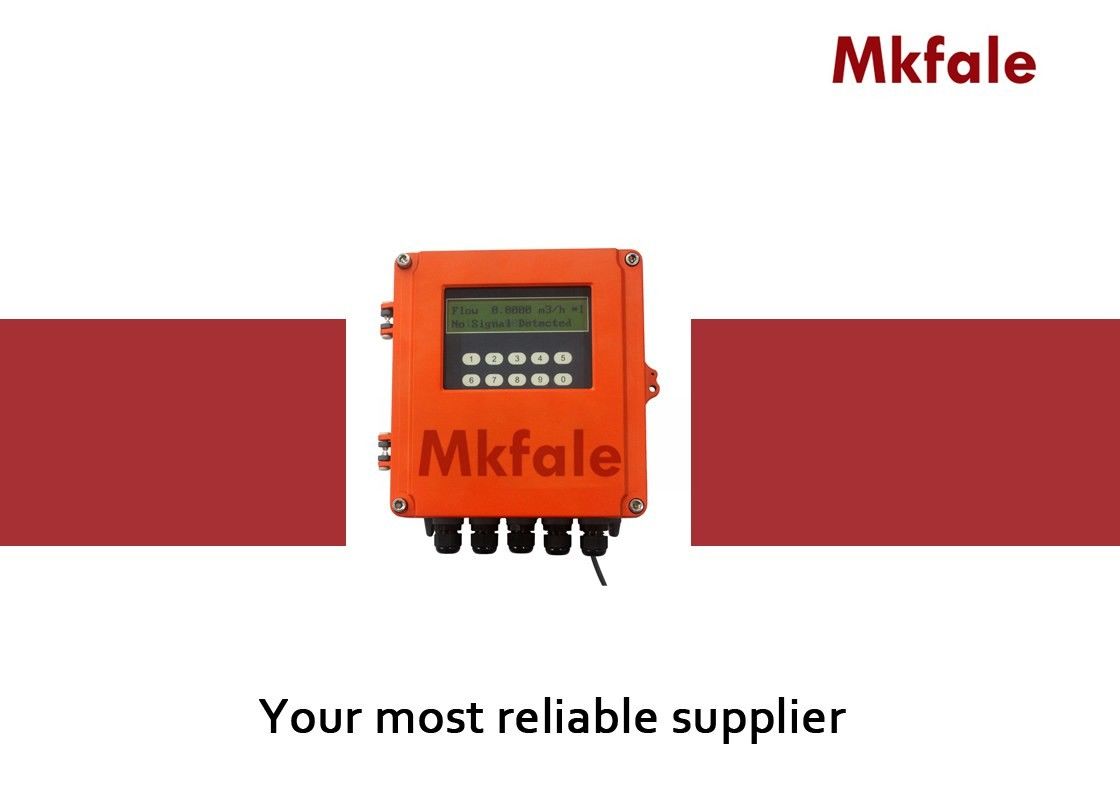

SMFUF Integrated Type Better than 1 % Accuracy Ultrasonic Flow Meter
Technical Specification Table
Water Electromagnetic Flow meter , Ceramic Liner electromagnetic flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter , Mass flow meter , Stainless steel Gauge , Bimetal thermometer,pressure transmitter , level transmitter , needle valve , Steam Solenoid Valve
SMFUF
Fixed Ultrasonic
Flow Meter |
Integrated type |
| Accuracy |
Better than 1% |
| Repeatability |
Better than 0.2% |
| Display |
2*10 English backlight LCD can display instantaneous flow and positive,
negative,net accumulative flow, flow velocity etc. |
| Operation |
4*4 touch keyboard operation (F4 transmitter magnetic buttons) |
Communication
protocol |
MODBUS, M-BUS, FUJI Extension protocol,and compatible with some other
similar products,protocol made by other China manufacturers |
| Medium |
Water,sea water,sewage,alcohol,all kinds of oil and other single,uniform,
stable liquid which can transmit ultrasonic wave |
| Viscosity |
≤20000ppm with less bubble |
| Pipe Material |
Carbon steel, Stainless steel, Cast iron, Coper, PVC, Aluminum,
FRP and other uniform pipeline, Liner is allowable |
Description
Automatically record positive/negative/net accumulative flow of the past 512 days,
the past 128months and the past 10years
Automatically record on/off power and flow rate of the last 30times and can
achieve add the flow rate automatically or manually,read by MODBUS protocol
Can program batch (quantitative) controller,with self-diagnosis function
Can achieve software update by code file sent via Email
Dynamic response speed:0.004s
DPS digital signal processing technology,high anti-interference ability
Time resolution 10ts, High accuracy flow measurement,accuracy can be 0.5% class
Heat and cold measurement
Circuit board welding adopt international advanced SMD automatic welding process
CNC precision machining aluminium alloy housing material
Application
SMFUF Series FixedType Ultrasonic Flow Meter is widely used
for online flow measurent of various industrial liquied.
Transmitter type: wall mounted A type, Wall mounted B type, wall mounted explosion type,
Panel type, local display type (F4 type transmitter) and module type;
Transducer type:clamp-on,insertion and pipeline type.
Measurement circle
500ms(Twice per second,one circle collect 128 group data)
Max Flow velocity
64m/s (velocity resolution 0.001m/s)
Input Signal
Three way 4-20mA analog input,accuracy up to 0.1% Can input pressure,level,
temperature and other signal Two way three-wire Pt100 temperature sensor
Data Storage
Optional built-in data logger (SD card) can record date,instantaneous flow,
accumulative flow,signal condition etc. Can import data by special software
to computer which is convenient for statistics and management.
Pipe Liner Material
Exoxyasphalt, Rubber,Slurry, Polypropylene, Polystyrene, Bakdlite, Ptfe etc
Signal Cable
SEYV75-2 type special shielded cable, single line can be lengthened to 500m,
Metal sleeve is needed when cabling to increase anti-interference performance,
Please noted cable shouldn’t parallel with the high tension line,and should
avoid the frequency converter or other interference sources.
