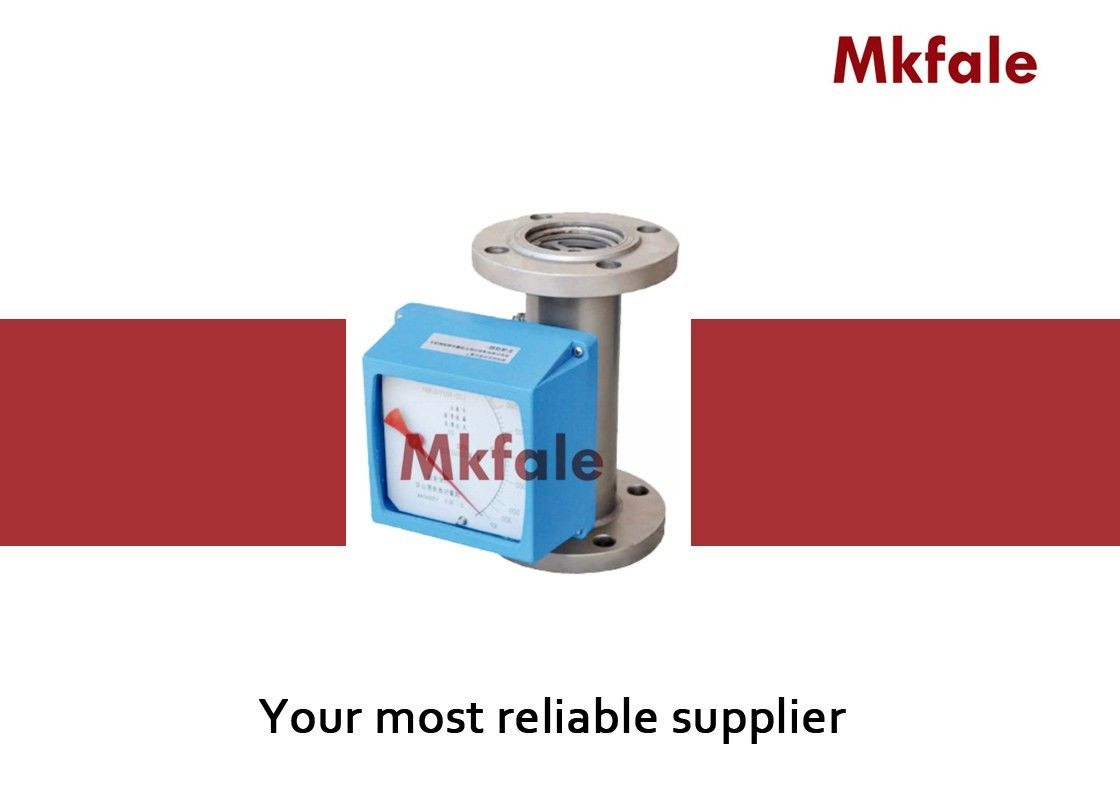

SMRT Flange type Air Gas Water Variable Area Flow Meter Metal RotaMeter
| Measure Principle |
Variable area flowmeter, namely in the vertical measure tube,when fluid through a pipe upwards, float up, lift and float at a particular location float suffered gravity balance, the float and orifice (or taper pipe) flow between keeping clearance area.Clearance area is proportional to the higher level of float, namely the size of the float a highly representative of the flow.Float up and down, in the form of a magnetic coupling transfer position to the external indicators, making the indicator pointer following the float, and with the help of a CAM plate to make the size of the pointer to indicate linear flow value. |
| Design selection |
Z: Pointer, D: LCD |
| Medium |
Air(Gas damper for option), Water |
| Body Material |
SS304,SS316L Liner:PTFE |
| Remote transmiter |
Es1 electricity remote transmit:0~10mA DC three wire |
| selection |
Es2 electricity remote transmit:4~20mA DC two wire |
| Ex-proof type |
ExiaⅡ CT4 |
Description :
SM series Variable area Flowmeter, has simple structure, reliable operation, wide applicable scope, high precision, easy installation, etc,.Compared with glass tube rotameter, the series of flowmeter with high pressure, high temperature resistance, strong security, simple reading and so on.And can be used with opaque medium and corrosive medium flow measurement.Instrument tube body and the flange is made of stainless steel (316L or 1 Cr18Ni9Ti). The conventional orifice, the float is made of stainless steel, corrosion of the orifice plate, float and pipe body lined with PTFE anti-corrosion materials.
Measure tube special requirement : Warmkeeper
Alarm Selection : K1 , K2 : ( SC3.5 - NO )
Power : 24VDC , 220VAC
Installation : Bottom to top;Bottom to top side;Bottom side to top side;Left to right;Right to left;
| Connection |
Flange type,thread type;Quick joint type |
| Flow range |
Water 2.5~100000L/h, Air 0.7~3000m3/h(see form as follow) |
| Measure ratio |
DN≤100mm; 10:1, DN＞100mm; 5:1 |
| Accuracy |
Standard type:+2.5%FS,the special order:can be up to ±1.0%FS |
|
Max working
pressure
|
DN15,DN25,DN40,DN50:4.0MPa; DN80,DN100,DN150:1.6MPa |
| Medium temperature |
Normal:-40℃~-100℃,High temperature:-80℃~-250℃ |
| Ambient Temperature |
-25℃~+55℃ |
| Protection grade |
IP65 |
| Viscosity |
DN15:≤5mPa.S,DN25~DN150:≤250mPa.s |
| Standard |
JB/T6844-1993 |
