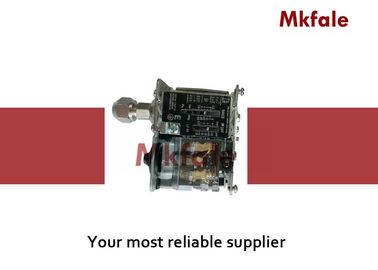

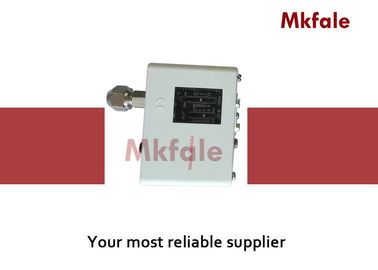

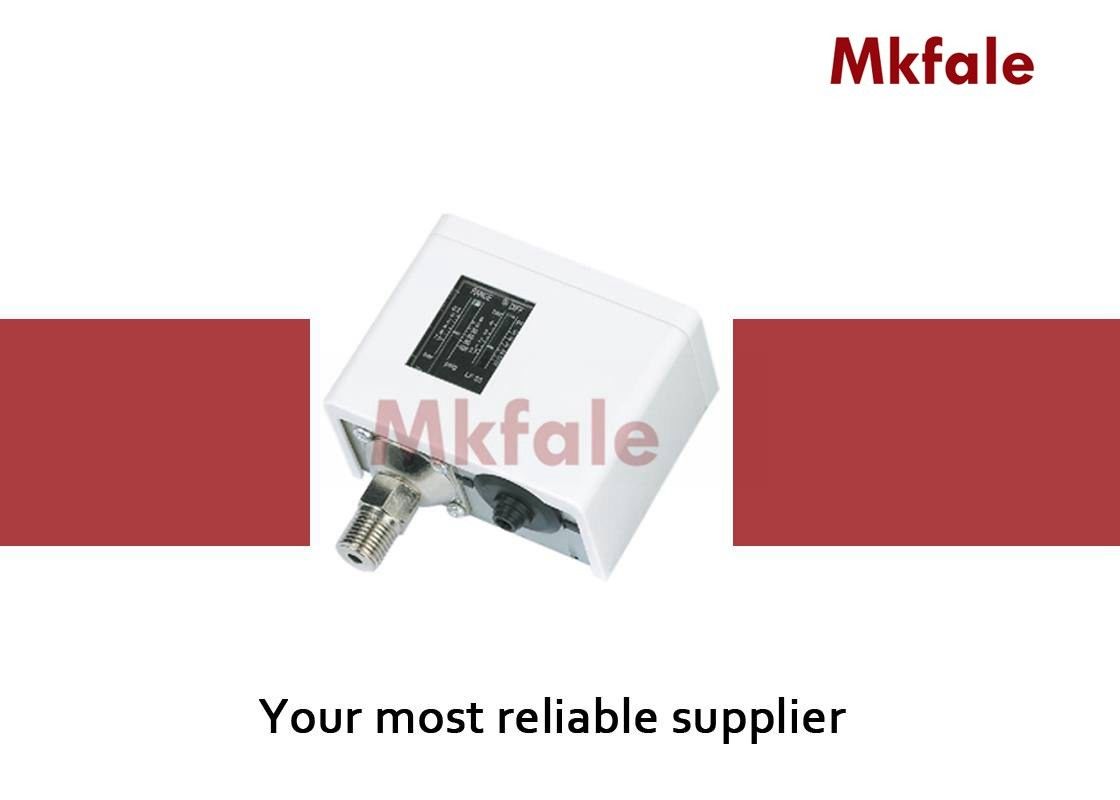

PC55 Pressure Switch For Refrigeration System Available In Air Or Water Fluid Quite Stable Performance
These differential pressure switches for refrigeration compressor is usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also be used in air and water. It provide two pressure set points in one switch. Several models are available with drip-proof enclosure for marine application or in explosion-proof enclosure for special applications. Various conatact functions are available. Internal Micro-swith ensures reliable switching. It is provided standard Mounting Bracket.
It usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also used in air and water. Internal Micro-switch ensures reliable switching. It is provided standard Mounting Bracket.
Electrical Function
| Rated Amps.(A)Rated Voltage (V)125VAC |
125VAC |
250VAC |
24VDC |
| Full Load |
20A |
10A |
8A |
| Locked Rotter |
72A |
72A |
64A |
| Temperature |
-20~110℃ |
|
Model
|
Range(bar) |
Differential(bar) |
Factory Setting(bar) |
Max Operating |
| Min Max |
Min Max |
OFF ON |
Pressure (bar) |
| PC 5502 |
-0.5 2 |
0.2 0.7 |
1 0.5 |
16.5 |
| PC 5503 |
-0.5 3 |
0.35 1.5 |
2 1 |
16.5 |
| PC 5506 |
-0.5 6 |
0.6 4 |
3 2 |
16.5 |
| PC 5506M |
-0.5 6 |
Reset Differential ≤1bar |
3 Manual Reset |
16.5 |
| PC 5508 |
-0.2 7.5 |
0.7 4 |
3 2 |
20 |
| PC 5510 |
1 10 |
1 3 |
6 5 |
16.5 |
| PC 5514 |
2 14 |
1 4 |
10 8 |
20 |
| PC 5516 |
3 16 |
1 4 |
10 8 |
35 |
| PC 5520 |
5 20 |
2 5 |
16 13 |
35 |
| PC 5530 |
8 30 |
Fixed 3 to 5bar |
20 15~17 |
35 |
| PC 5530M |
8 30 |
Reset Differential ≤4bar |
20 Manual Reset |
35 |
| PC 5530D |
5 30 |
3 10 |
20 15 |
35 |
| PC 5532 |
8 32 |
2 6 |
20 17 |
35 |
| PC 5542 |
8 42 |
4 10 |
30 25 |
46.5 |
