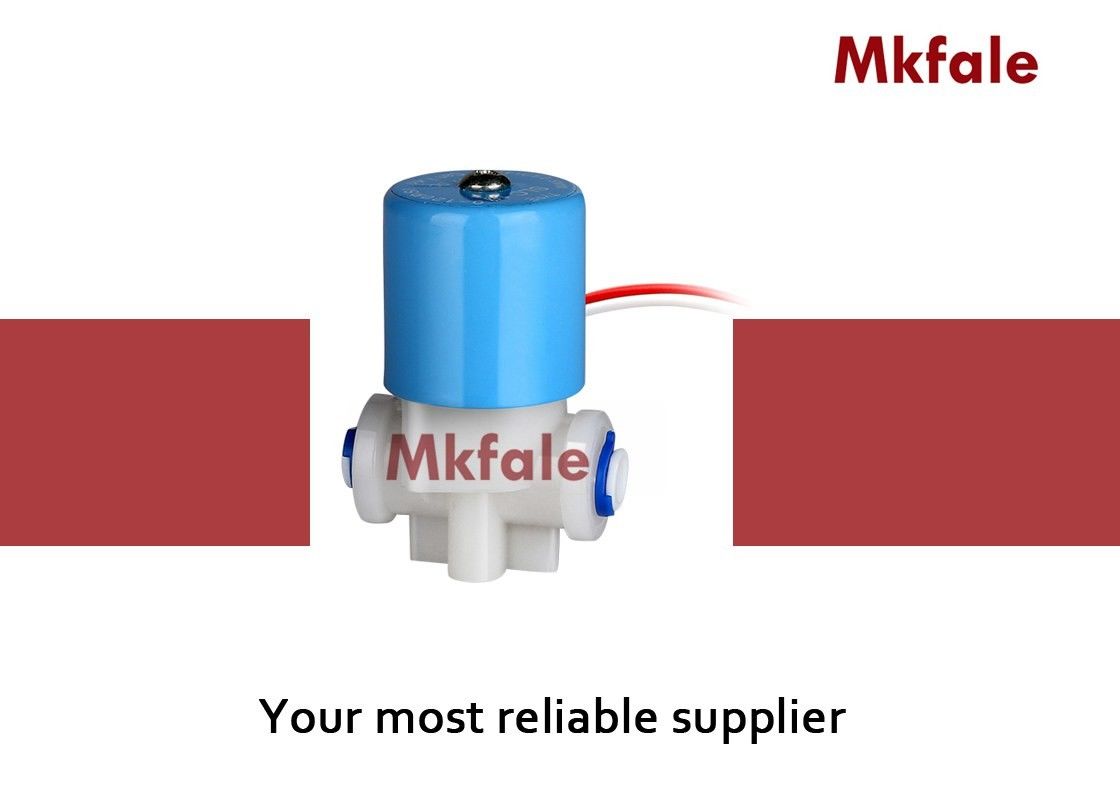

SMLC 10 Series Water Dispenser Plastic Solenoid Electric Valve Normally Closed Direct Acting R 1/4" Quick Connected Pipe
SMLC10
Specification
Direct acting , Normally Closed
Response time : 0-5Msel
Upright direction , Fixing Screw M5
Using
Fluid media water
Fluid Temp : 0℃ to 100℃
Ambient Temperature : -10℃ to 40℃
Characteristic
Power consumption : AC6.8VA (HOLD) DC5W
Voltage : AC24V 110V 220V , DC24V
Voltage Tolerance -10% to + 10 %
Coil Class : Class B 130
Duty cycle : 100%
Lead length : 30cm (12")
Component Material
Plunger : IG117
Seals : EPDM
Body Material : PP white
Shading Ring : Red copper
Technical Parameters
| Quick Connected Pipe |
Orifice |
CV |
Operating Pressure |
Model Code |
| MIN |
MAX-AC |
MAX-DC |
| R1/4” (φ6.35) |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC10 |
