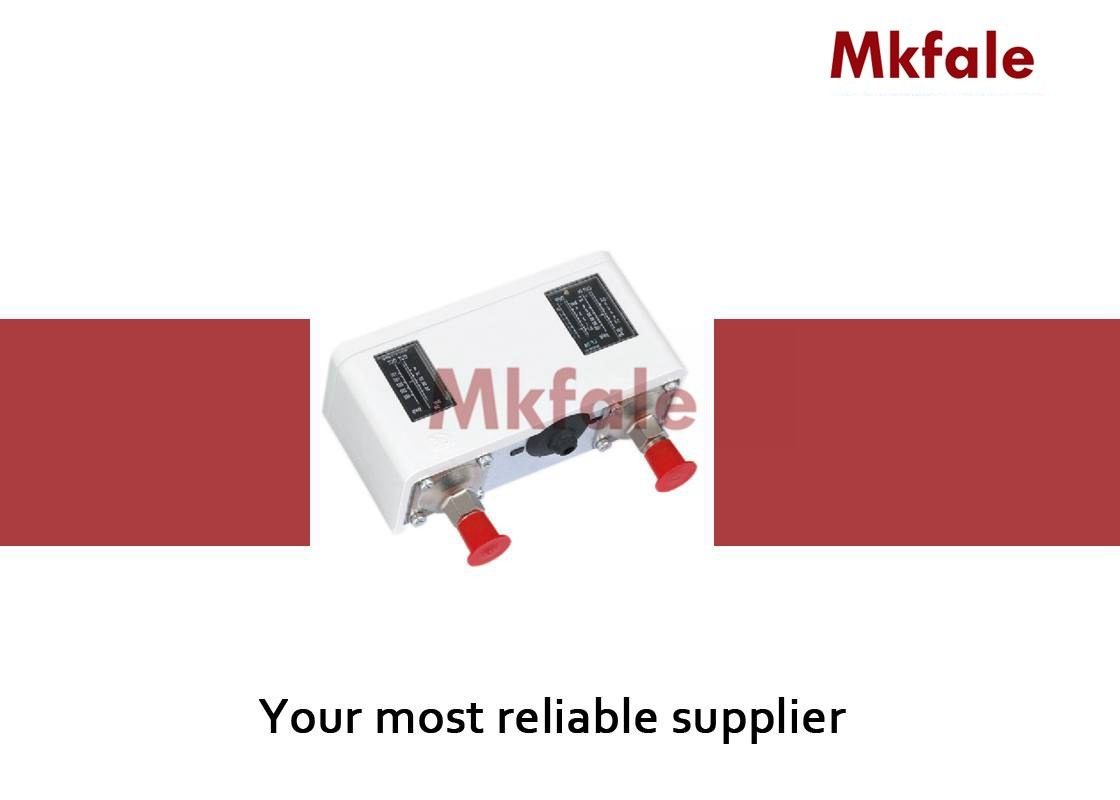

PC58 Pressure Switch For Refrigeration System With Two Pressure Set Points
Electrical Function : B-C , D
Rated Amps .(A)Rated Voltage (V) : B-C 125VAC , 250VAC , 24VDC , D 250VAC
Full Load : 20A , 10A , 8A , 50VA
Locked Roter : 72A , 72A , 64A , 4A
Temperature : -20~110℃
Specification
| Model |
Press Side |
Range (Bar) |
Differential(Bar) |
Factory Setting (Bar) |
Max Operating Pressure(Bar) |
| Min |
Max |
Min |
Max |
OFF |
ON |
| PC5832 |
Low Side |
-0.2 |
7.5 |
0.7 |
4 |
4 |
2 |
20 |
| High Side |
8 |
32 |
Fixed 4 |
20 |
15 |
35 |
| PC5832HM |
Low Side |
-0.2 |
7.5 |
0.7 |
4 |
4 |
2 |
20 |
| High Side |
8 |
32 |
Fixed 4 |
20 |
Manual Reset |
35 |
| PC5832HLM |
Low Side |
-0.2 |
7.5 |
Fixed 4 |
3 |
Manual Reset |
20 |
| High Side |
8 |
32 |
Fixed 4 |
20 |
Manual Reset |
35 |
PC58 Dual pressure switches is usually used with Fluorinated refrigerants to control the pressure of Compressor in refrigerants system. It can be also be used In air and water .It provided two pressure set points in One switch.
