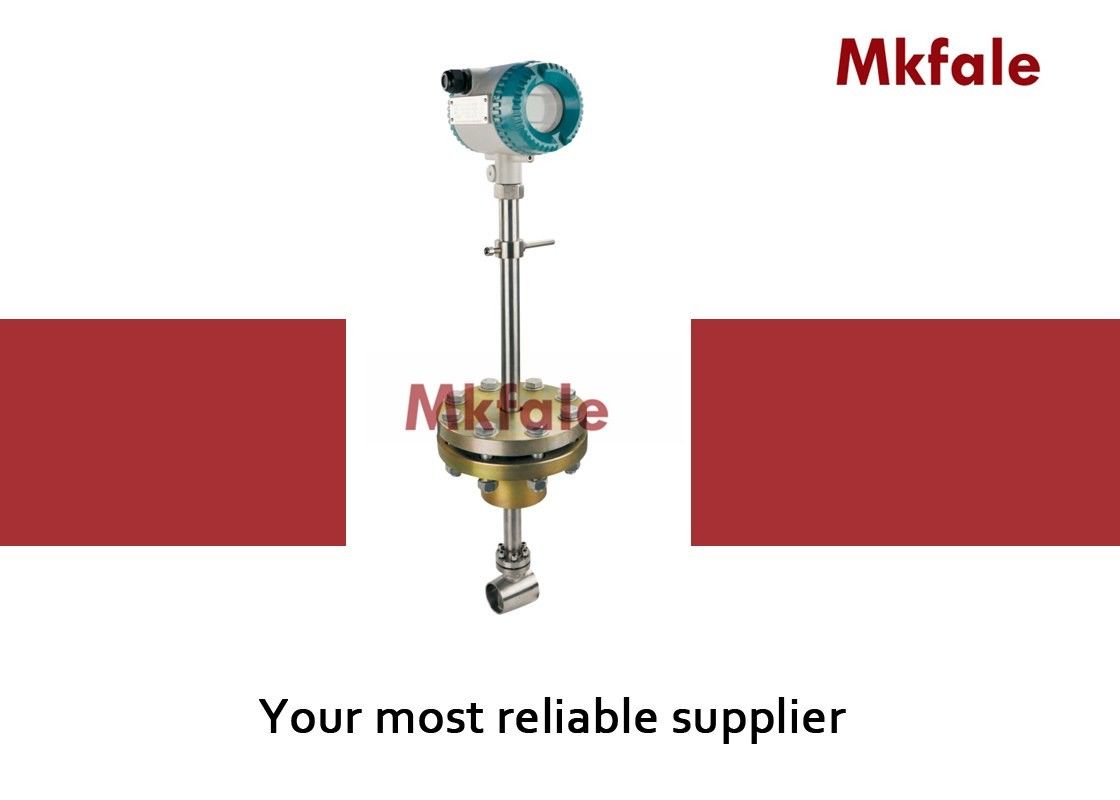

Portable Insertion Type Vortex Flow Meter Nominal Diameter DN 100 ~ DN 3000
Technical Specification Table
SMVF Vortex Flow Meter Integrated Type
Description
Normally:
-40℃~350℃
Communication:
HART,RS485
Brand new digital processing calculation,
enjoy excellent anti-vibration & anti-interference performance
Adopt built-in sensor structure ,better protect the flow sensor
Flow sensor embedded temperature sensor ,reduce the leakage point
Main body adopt precesion casting technology ,stronger swirl generating body
Nominal Diameter :
DN10~DN300(Flange and water), DN100~DN3000(Insertion)
Body Material :
Cast steel; SS304; SS316L
Connection Type :
Insertion
Power :
24VDC
Special Mark
Blank: Common; M: Standard Signal Output; B: Intrinsically Safe Explosion-proof
X: On Site Display; G: High Temperature(350℃)
W: Temperature Compensation; Y: Pressure Compenstion
Z: Temperature & Pressure Compensation
Measured Medium :
Liquid; Common Gas; Saturated Steam; Superheated Steam; Others
| Nominal Diameter |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
| Water |
1.3~15 |
1.5~16 |
3~33 |
4~44 |
6~66 |
13~140 |
20~220 |
36~400 |
|
Standard Measuring
Range(m3/h)
|
| Normal pressure and temperature air(NPT air) |
8~100 |
14~350 |
18~450 |
30~750 |
50~1250 |
70~1750 |
100~2500 |
200~5000 |
|
Standard Measuring
Range(m3/h)
|
| Nominal Diameter |
150 |
200 |
250 |
300 |
| Water |
50~600 |
100~1200 |
150~1800 |
200~2400 |
|
Standard Measuring
Range(m3/h)
|
| Normal pressure and temperature air(NPT air) |
400~10000 |
600~15000 |
1000~25000 |
- |
|
Standard Measuring
Range(m3/h)
|
Insertion Type
| Size |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
| Mark No . |
100 |
125 |
151 |
201 |
251 |
301 |
351 |
401 |
501 |
601 |
701 |
801 |
901 |
102 |
122 |
142 |
162 |
182 |
201
|
