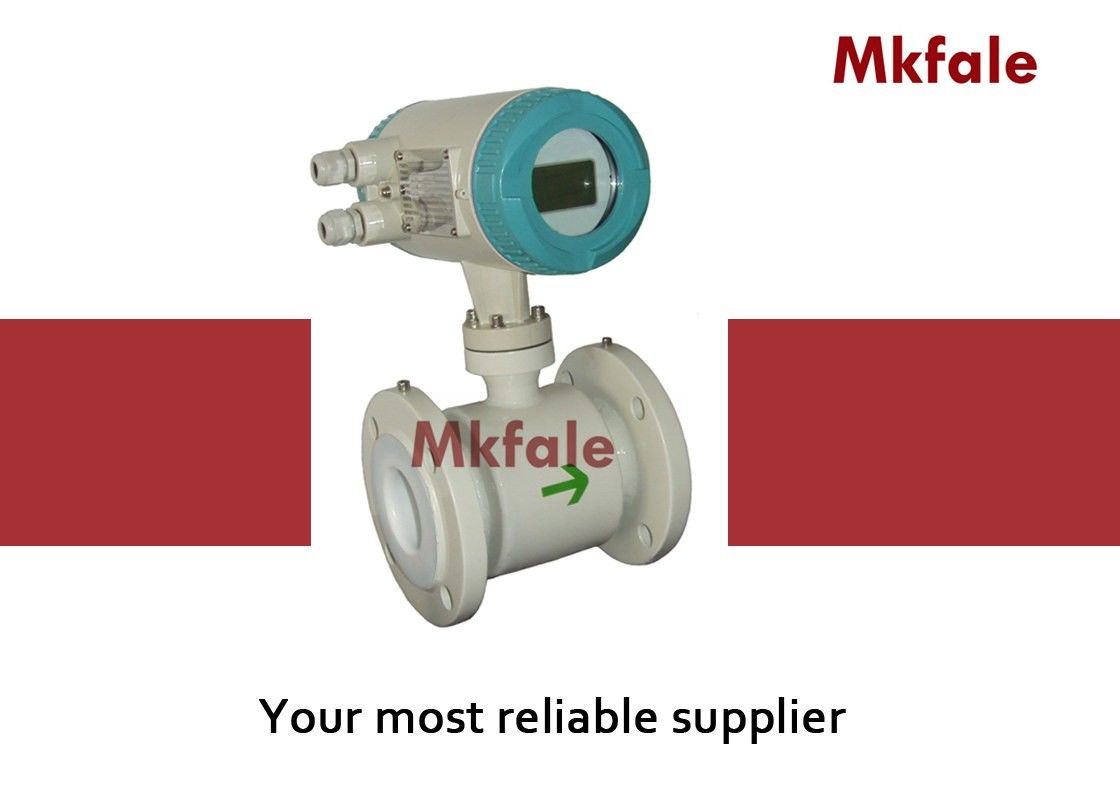

Portable SMEF Electromagnetic Flow Meter Hastelloy B Type for Sulfuric Acid
Technical Specification Table
|
SMEF
Electromagnetic
Flow Meter
|
Integrated type |
| Description |
Self-diagnosis, intelligent work
Accuracy: +- 5%; Flow rate: +0.3m/s
Low discharge measurement accuracy and two way measurement.
Underground sensor(IP68) installed without building measuring well
Cold and heat measure function
Double frequency excitation, good zero stable
Build-in ground electrode already
Display: Local flow rate & Total & Flow velocity
|
| Application |
Fluid: Any electrically conductive liquid; Conductivity: >=5us/cm;
Temperature: Neoprene/PU: -10C-+60C; PTFE/PFA/F46: -10C-+120C
Standard: JB/T9248-1999
|
| Nominal Diameter |
DN10~DN3000 |
| Body Material |
Cast steel; SS304; SS316L |
Liner Material : PTFE ; PFA ; Neoprene ; Polyurethane ; Ceramic
Electrode Material : 316L ; Hastelloy B ; Hastelloy C , Titanium ; Platinum – iridium ; Tantalum , Stainless steel covered with tungsten carbide
Connection Type : Flange ; Clamp ; Sanitary ; Wafer ; Thread
Structure Type : Integral type ; Remote type ; Remote type immersion ; Integral type Ex – proof ; Remote type Ex - proof
Flange Type : GB / T9119 – 2000 ; JIS 10K ; JIS20K ; ANSI 150 ; ANSI 300 ; DIN Pn10 ; DIN Pn16 ; Bs4504 ; AS4087
Power : 24VDC; 220VAC 50Hz
Output Communication :
Flow volume4~20ADC/pulse ;
Flow volume4~20ADC/RS232C communication ;
Flow volume4~20ADC/RS485 communication ;
Flow volume HART output / with communication ;
Converter Figure : Square ; Circular
Optional : Grounding electrode; Coupled flange , Entrance protection flange ; Scraper type electrode ; Other
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Provide free products information .
4: Reliable quality assured and active after-sell service
5: 12-18month quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: What types of service ?
A: Supply technical information for your Working condition and give advise about details.
