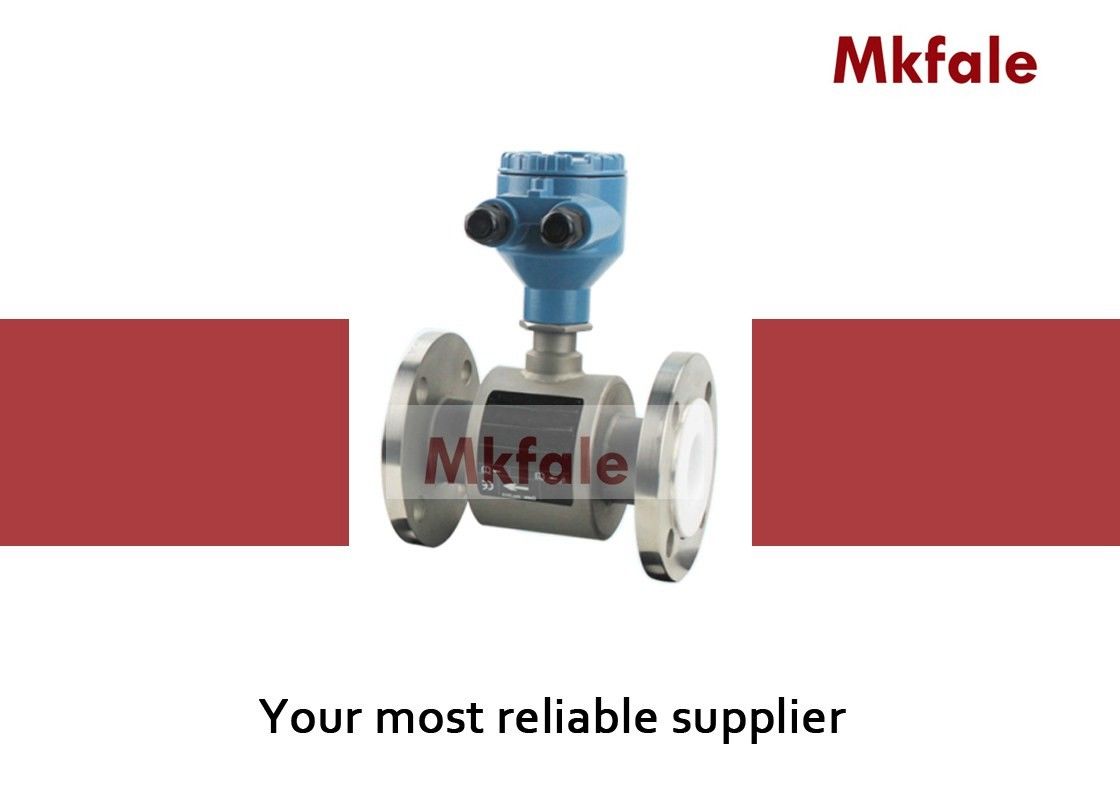

SMEF 24VDC , 220VAC 50Hz Remote type Electromagnetic Flow Meter Water Flow Meter Rosemount Type Touch Screen
Technical Specification Table
Water Electromagnetic Flow meter , Sanitary electromagnetic flow meter , Turbine flow meter , Ultrasonic flow meter , Ultrasonic level meter ,Stainless steel Gauge , oil liquied gauge ,Bimetal thermometer,pressure transmitter , Temperature transmitter , needle valve , Water solenoid Valve .
Nominal Diameter :
DN10~DN3000
Body Material :
Cast steel; SS304; SS316L
Liner Material :
PTFE ; PFA ; Neoprene ; Polyurethane ; Ceramic
Flange Type :
GB/T9119-2000; JIS 10K; JIS20K; ANSI 150; ANSI 300; DIN Pn10; DIN Pn16; Bs4504; AS4087
Power :
24VDC; 220VAC 50Hz
Output Communication :
Flow volume4~20ADC/pulse;
Flow volume4~20ADC/RS232C communication
Flow volume4~20ADC/RS485 communication;
Flow volume HART output/with communication
| SMEF Electromagnetic Flow Meter |
Remote separate type |
| Description |
Self-diagnosis, intelligent work
Accuracy: +- 5%; Flow rate: +0.3m/s
Low discharge measurement accuracy and two way measurement.
Underground sensor(IP68) installed without building measuring well
Cold and heat measure function
Double frequency excitation, good zero stable
Build-in ground electrode already
Display: Local flow rate & Total & Flow velocity |
| Application |
Fluid: Any electrically conductive liquid; Conductivity: >=5us/cm;
Temperature: Neoprene/PU: -10C-+60C; PTFE/PFA/F46: -10C-+120C
Standard: JB/T9248-1999 |
| Electrode Material |
316L; Hastelloy B; Hastelloy C
Titanium; Platinum-iridium; Tantalum
Stainless steel covered with tungsten carbide |
| Connection Type |
Connection Type Flange; Clamp; Sanitary; Wafer; Thread |
| Structure Type |
Integral type; Remote type; Remote type immersion;
Integral type Ex-proof; Remote type Ex-proof |
| Converter |
Circular |
| Optional |
Grounding electrode; Coupled flange
Entrance protection flange; Scraper type electrode; Other |
Why choose us
1: Various style for each products and completely series industry instruments.
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: 12-18month quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: High qulaity industry instruments is our business scope .Include Flow meter,Water meter,Manometer,Pressure ,Temperature,Level transimitter and parts.and industry Valve for water,anticorrosion fluid.
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
